CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

Name: CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
Brand: Shandong HR Machinery Co., Ltd.
SKU: CK6140
Price: 4,565.00 USD
Availability: InStock

Tutti i prodotti

Centro di lavorazione verticale di CNC
(78)

fresatrice verticale di CNC
(14)

Macchina di CNC VMC
(29)

Vmc fresatrice di CNC
(28)

centro di fresatura di CNC
(37)

Fresatrice universale
(27)

VMC centro di lavorazione
(19)

centro di macinazione verticale
(31)

Fresatrice del metallo
(20)

Una macchina di 4 assi VMC
(14)

Un centro di lavorazione di 5 assi
(15)

Macchina del tornio di CNC
(71)

Migliori prodotti

Torno per tubi CNC orizzontale ad alta precisione QK1322-1500 con lunghezza massima di taglio di 500 mm

Tck56-1000 Lato inclinato orizzontale macchina di tornitura CNC alta precisione

Sono ora online in chat

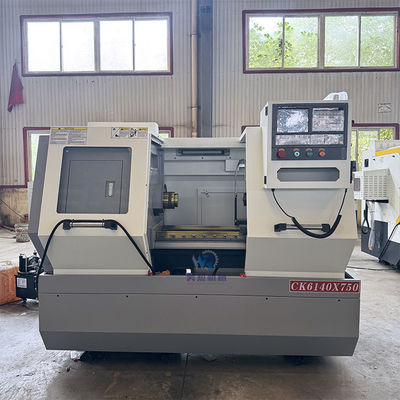

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

Grande immagine : CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

Dettagli:

Luogo di origine:	Shandong, Cina
Marca:	HR
Certificazione:	CE
Numero di modello:	CK6140

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 set
Prezzo:	$9130 1set
Imballaggi particolari:	Cassa in legno
Tempi di consegna:	30 giorni
Termini di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione:	mesi 40sets

Contatto

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

descrizione

Voltaggio:	3 Fase 380V 50Hz	Grado automatico:	Automatico
Potenza (W):	7.5KW	Condizione:	Nuovo
Max. Diametro swing:	400 mm	Peso:	1650/1700 kg
CNC o no:	CNC	Tipo:	orizzontale
Servizio post-vendita fornito:	Supporto online	Garanzia:	1 anno
Foro del mandrino:	60 mm	Velocità del fuso:	150-2500rpm
Colore:	può essere libero di scegliere	Velocità massima del mandrino (rpm):	2500 giri / min
Nome prodotto:	Macchine a tornio CNC CK6140	Anno:	Nuovo
Sistema di controllo:	SIEMENS GSK FANUC (facoltativa)	Tipo di macchina:	Flat Bed Lathe,CK6140 Alta Qualità Cina Flat Bed Cnc Lathe Machine Prezzo
Evidenziare:	small benchtop CNC lathe machine , horizontal CNC turning machine , CK6140 CNC lathe machine

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

Product Description

CNC Lathe Features

1. Frequency conversion stepless speed regulation.
2.With servo system .
3.Four position elearic turret .
4.Standard configuration: spring chuck and chuck double use.
5.Optional configuration : hydraulic chuck, gang type tool post.

Item	CK6140A		CK6140B
Max. swing dia. over bed	Φ400mm		Φ400mm
Max. swing dia. over cross slide	Φ225mm		Φ245mm
Max. processing length(mm)	750	1000	750	1000
Dia. of spindle hole	Φ60mm		Φ52mm
Spindle speed	150-2500rpm		150~500rpm (low) 320~1600rpm (high)
spindle taper	MT6
Tool holder	4 station electric tool post(optional 6/8staion electric turret)
Tool bar section	20X20		20X20
Main motor power	5.5KW		5.5KW
X/Z axis fast feeding speed	6/8 M/MIN		6/8 M/MIN
X/Z axis position accuracy(mm)	0.01/0.015		0.01/0.015
X/Z-axis repeatability(mm)	0.012/0.013		0.012/0.013
Clamping	3 Jaw Manual Chuck(optional pnematic or hydraulic chuck)
Tailstock sleeve dia.	60	60	60	60
Tailstock sleeve travel	120mm		120mm
Tailstock taper	MT4
Dimension	2120X1400X1700		2050x1400x1650
	2370X1400X1700		2300X1400X1650
Weight(kg)	1800	1950	1850	2050
Standard configuration:		Optinal configuration:
GSK928 CNC Controller		Siemens,Fanuc cnc controller system
Servo motor for X,Z axis, Servo driven		pneumatic chuck,hydraulic chuck
3 Jaw Manual Chuck		pneumatic tailstock,hydraulic tailstock
4 station electric tool post		6 staion tool turret,8staiton tool turret
Auto lubrication system		Auto feeder system
lighting system		Chip conveyor

Details Images

Product Presentation
This machine is widely used in processing and manufacturing the electrical appliance, instrume ntation industry,automobile, motorcycle, fastener bearings, photographic and film machinery.hardwa re tools watches, glasses, stationery motors, valves and gas and other high precise and complex components lt is the ideal high eficient equipment in the hardware machining industry.

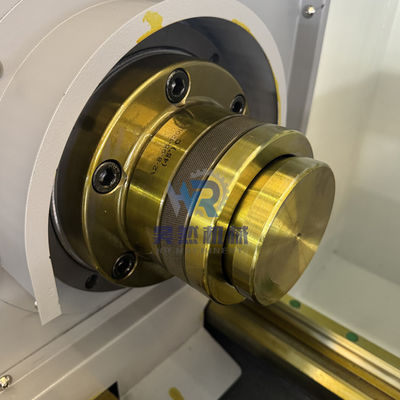

Manual chuck

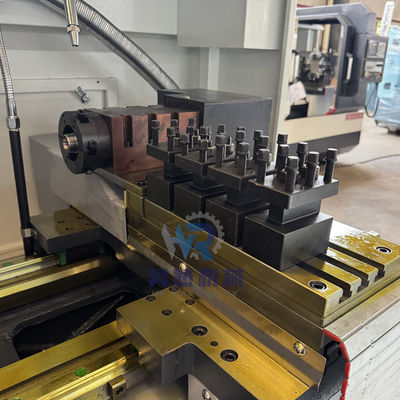

4 Position Electrical Toolpost

Circuit Controlle

Electromagnetic Pump

GSK Controller System(optional)

Spindle Diameter

Company Introduction

Shandong HR machine Co., Ltd.is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.

Our services

Our Services & Strength

1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.

2. Received your phone or mail,we will Analyze the problem immediately.

3.Supply professional solution, after analyze the problem, we give you our best solution.
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).

Packing&Shipping

1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.

5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product,please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certificationand CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

Recommend Products

FAQ

Q1: How to buy the right product for you ?

A1: You can pass on your requirements to me, and we will reply to you in time.

Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will timely deal with the free new parts for you to replace the next order.

Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc.

Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
